外墙外保温岩棉板 / Exterior wall insulation rock wool board
恒润外墙外保温专用岩棉板是专为建筑物的外墙外保温薄抹灰系统而设计生产，具有一定的垂直面抗拉强度、尺寸稳定性、 高憎水率和低吸水率。适用于基墙为混凝土或砖地等密实结构的新建或既有建筑物的外墙保温或节能改造。同时本品可作为与外墙 保温系统配套的防火隔离带适用，以提高建筑物外墙的整体消防安全。
Hengrun Exterior Wall Exterior Thermal Insulation Special Rock Wool Board is specially designed and manufactured for exterior wall exterior thermal insulation thin plastering system of buildings.It has certain vertical tensile strength,dimensional stability,high hydrophobicity and low water absorption.It is suitable for heat preservation or energy-saving reconstruction of exterior wall of newly built or existing buildings with compact foundation walls such as concrete or brick floor.At the same time,this product can be used as a fire-proof isolation belt matching with the external wall insulation system to improve the overall fire safety of the building external wall.

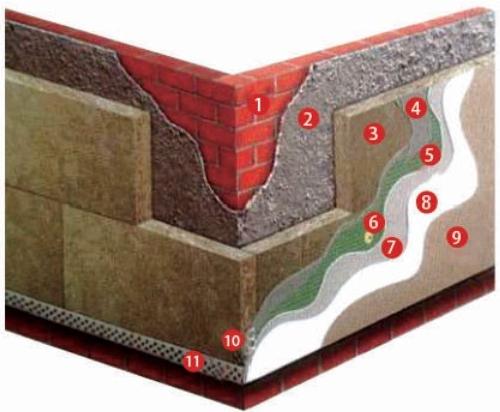

岩棉板薄抹灰外墙外保温
1/基层墙体
2/粘结砂浆
3/恒润外墙外保温专用岩棉板
4/抹面胶浆
5/单层或双层网格布
6/锚固钉
7/找平层
8/通用底涂漆
9/硅涂料或装饰砂浆
10/护角条
11/底座托架
标准规格型号 / Standard type
| 产品型号 | TR7.5 | TR10 | TR15 |
| 标称密度Density(kg/m) | 140-160 | 160-180 | 180-200 |
| 尺寸Size(mm) | 1200×600 | ||
| 厚度Thickness(mm) | 30-140 | ||
主要性能和技术指标 / Performance and technical specifications
| 型号性能 | TR7.5 | TR10 | TR15 | 单位 | 标准 |
| 抗压强度(垂直于表面) | ≥40 | ≥60 | ≥80 | kpa | GB/T13480 |
| 抗拉强度(垂直于表面) | ≥7.5 | ≥10 | ≥15 | kpa | JG149-2003 |
| 导热系数 | ≤0.040 | w/mk | GB/T10295 | ||
| 纤维平均直径 | ≤4-7 | um | |||
| 酸度系数 | ≥1.8 | GB/T5480 | |||
| 燃烧性能分级 | A1级 | GB/T8624 | |||
| 憎水率 | ≥99 | % | GB/T10299 | ||
| 吸水性(部分浸入) | ≤0.5 | kg/m² | GB/T25975 | ||
| 吸湿率 | ≤1.0 | % | GB/T5480 | ||
| 尽寸稳定性 | ≤1.0 | % | GB/T8811 | ||
| 熔化温度 | ≥1000 | ℃ | |||
| 直角度 | ≤5 | mm/m | GB/T5480 | ||
| 平整度 | ≤5 | mm | GB/T25975 | ||
| 环保 | 无石棉、不含CFC、HCFC、HFC | ||||
