外 墙 外 保 温 岩 棉 带 ( 竖 丝 ) / 防 火 隔 离 带
Exterior wall insulation rock wool belt (vertical wire)/fireproof isolation belt
恒润外墙外保温岩棉带是 JGJ289-2012《 建筑外墙外保温防火隔离带技术规程》推荐实用的 A 级不燃材料。从节能、防火与 安全性考虑，外墙外保温岩棉带是建筑物防火隔离带的最佳防火保温材料，能与其他燃烧性能达不到A 级的保温材料(如 EPS、XPS 板等)配套应用，可提高建筑物的整体防火性能。其应用于非 A 级保温材料外墙外保温系统中，按水平方向设置，能有效组 织火灾蔓延，提高建筑物外墙的防火功能。
Hengrun Exterior Wall Exterior Thermal Insulation Rock Wool Belt is a practical class A non-combustible material recommended by JGJ 289-2012 “Technical Specification for Building Exterior Wall Exterior Thermal Insulation Fire Isolation Belt”.Considering the energy saving,fire protection and safety,the rock wool tape is the best fire-proof insulation material for building fire-proof isolation belt.It can be used with other insulation materials (such as EPS,XPS board,etc.)whose combustion performance can not reach grade A,and can improve the overall fire-proof performance of building.It is used i n the external wall insulation system of non-A-grade insulation materials.It can effectively organize the spread of fire and improve the fire-proof function of the external wall of buildings.
标准规格型号 Standard type
| 产品型号 | TR80 | TR100 |
| 标称密度Density(kg/m) | 100 | 120 |
| 尺寸Size(mm) | 1200×150 | |
| 厚度Thickness(mm) | 30-150 | |

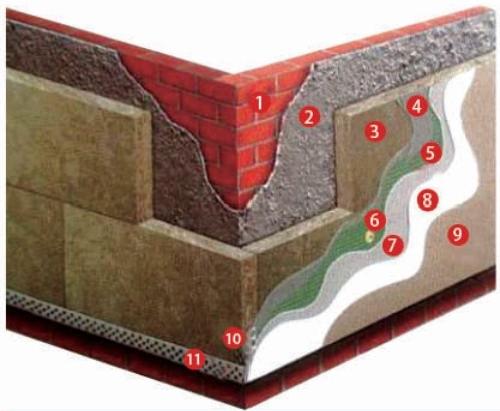

岩棉带薄抹灰外墙外保温
1/基层墙体
2/粘结砂浆
3/恒润外墙外保温专用岩棉板
4/抹面胶浆
5/单层或双层网格布
6/锚固钉
7/找平层
8/通用底涂漆
9/硅涂料或装饰砂浆
10/护角条
11/底座托架

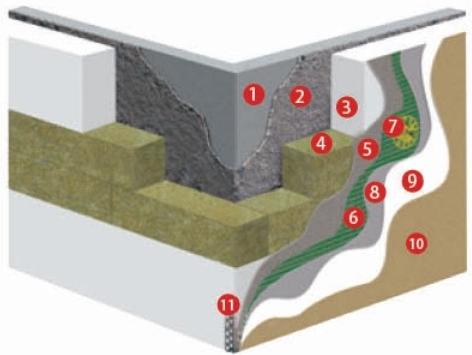

外墙外保温防火隔离带
1/基层墙体
2/粘结砂浆
3/非 A 级保温材料
4/恒润岩棉
5/抹面胶浆
6/网格布
7/锚固钉
8/找平层
9/通用底涂漆
10/硅涂料或装饰砂浆
11/护角条
主要性能和技术指标 / Performance and technical specifications
| 型号性能 | TR7.5 | TR10 | 单位 | 标准 |
| 抗压强度(纤维方向) | ≥40 | ≥60 | kpa | GB/T13480 |
| 抗拉强度(纤维方向) | ≥7.5 | ≥10 | kpa | JG149-2003 |
| 导热系数(平均温度25℃) | ≤0.040 | w/mk | GB/T10295 | |
| 燃烧性能 | A1级 | GB/T8624 | ||
| 憎水率 | ≥99 | % | GB/T10299 | |
| 吸水性(部分浸入) | ≤0.5 | kg/m² | GB/T25975 | |
| 吸湿率 | ≤1.0 | % | GB/T5480 | |
| 尺寸稳定性 | ≤1.0 | % | GB/T8811 | |
| 熔化温度 | ≥1000 | ℃ | ||
| 直角度 | ≤5 | mm/m | GB/T5480 | |
| 平整度 | ≤5 | mm | GB/T25975 | |
| 酸度系数 | ≥1.8 | GB/T5480 | ||
| 环保 | 无石棉、不含CFC、HCFC、HFC | |||
